EXAIR offers industry leading Intelligent Compresses Air Products. Our products are engineered to comply with all relevant OSHA standards and are CE certified. When you purchase an EXAIR product, be it a Super Air Knife or a brass bulkhead fitting, you are expecting to receive a high quality and high performing product, and you will. If the product is not performing there is a very high probability that the problem is not the product.
So whatever could it be? And how can we fix the issue? Air supply going to the product is a common issue, so first we need to insure that there is a steady flow of the appropriate pressure and volume of air. Even though you may have a 100HP compressor, the distance form the product, the size of the pipes delivering the air, the smoothness of the inside of the pipes (is there internal rust and buildup), leaks and other restrictions of air flow rate all contribute to the overall performance.
A large majority of the product performance issues that are brought to us are caused by insufficient air supply in one form or another. Sometimes this is due to the overall size of the system, but many times it is at the point of use. Let’s assume that you have the right sized compressor to power all features in the shop. These next items are where we would want to focus and correct.

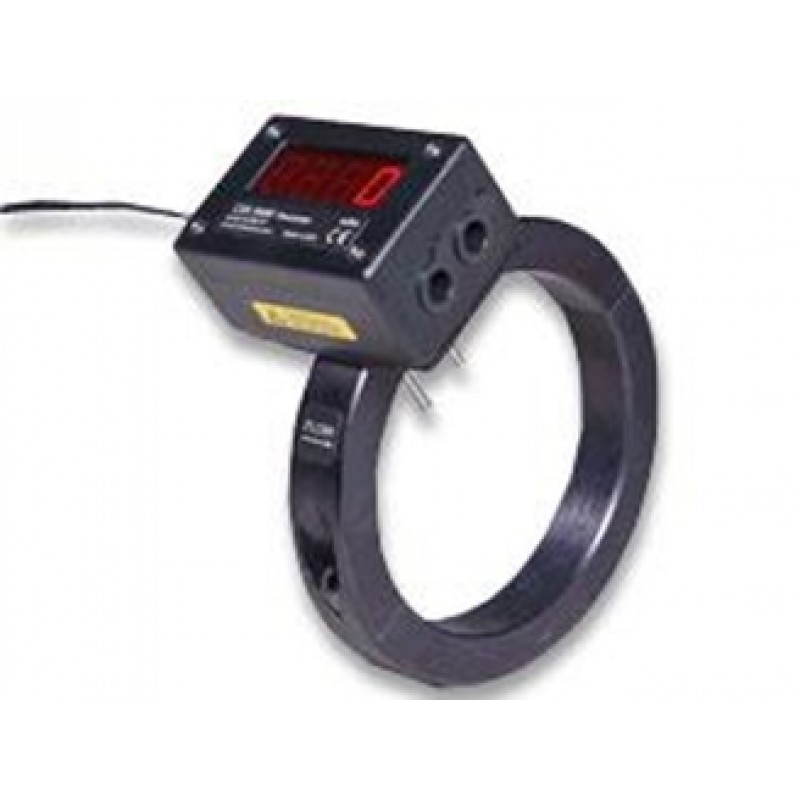

Pro tip #1 – Use EXAIR Digital Flowmeters to monitor your air consumption. You should have a log of how much each compressed air tool / machine uses, and compare that to how much air is traveling down that leg of your facility. Leaks, corrosion, rust, and accidents happen. By monitoring and logging your SCFM in each major leg of your system, you will easily be able to narrow down root problems, and track leaks. You will also have solid answer when asked – “Do you have enough air for this?”.
Pro Tip #2 – Use a Tee Fitting and install a Pressure Regulator with Gauge at the point of use. This allows you to see, and control the pressure for each product. This removes all questions of air pressure at the point of use. Although your system seems large enough, many times the pressure is less at the point of use, due to restrictions, unknown leaks etc… Having the information from tip #1 and #2, you will easily be able to identify if your issue is the system, or the tool.
Pro Tip #2.5 – Turn it down (the pressure) if you can… Operate each compressed air application at a pressure just high enough for your desired result – not necessarily full line pressure. We have discussed in many other blogs how compressed air is your 3rd or 4th highest utility. If you optimize the pressure per application, you can save dollars. As a rule of thumb, if your system is operating at the 100 psig level, lowering the pressure by 2 psig will save 1% of energy used by the air compressor. A great example of this would be our Super Air Knives. Optimal use is at 80 psig, and “X” SCFM (based upon length of the Super Air Knife). At 80 psig and the proper SCFM, this flow will feel like having your hand out the window of your car when you are driving about 50 MPH. Your application may not need that much air flow, to get the job done. Turn it down and test it. Start at 80 psig and using the tools from tip #2, turn it up or down until your needs are met. Many of our products do not need to be used at full pressure to effectively solve your process problem.
Pro tip #3 – Use the proper sized lines, connectors and fittings. Pipe restriction can kill performance. Quick connects can be very problematic. Most quick connects are rated at the same size as the incoming pipe, tube or hose, but may actually have a much smaller inner diameter. As you can imagine, this oversight can cause significant performance issues, and end up costing more lack of production or defective product. Be it a quick connect, or any other connector or fitting, it is imperative not to restrict the air. This will result in problems, and lack of performance.
Please do not hesitate to reach to discuss any performance issues, or find out how we can help.
Thank you for stopping by,
Brian Wages
Application Engineer
