Gen4 Super Ion Air Knife Cleans Art!

I took a phone call recently from an artist who applies thin colored films to glass sheets. He then uses several panes of that colored glass to build beautiful simplistic art installations! They are so clean and clear every angle you look through you get a different color and view you wouldn’t expect. But he was having a problem, these sheets of glass were building a large static charge and making every bit of dust and dirt stick to the surface. They were spending countless hours painstakingly cleaning every panel of glass because one spec of dirt would ruin the end goal.

Colored Glass Walk Way

Originally they called in to look at the Super Air Knife, which is good to remove dirt, dust and debris – but does not eliminate static if that debris were to be held on to the glass with static. His idea was to poor water on the glass then use the Super Air Knife to blow the water off, messy but they were hoping to kill two birds with one stone. Getting rid of the static and cleaning the glass all at once. He was excited when I told him about out our GEN4 Super ION Air Knife! It would have the ability to neutralize the static charge and blow away any debris clinging to the surface.

The Gen4 Super Ion Air Knife floods an area or surface with static eliminating ions. With a uniform airflow across its length, misalignment to critical surfaces, like a web, is avoided.  The force can be adjusted from a light breeze, to a full out blast of air. The Gen4 Super Ion Air Knife is electrically powered, is shockless and has no moving parts.

How It Works

gen4siak_hwrks_800x
How The Gen4 Super Ion Air Knife Works

In the diagram above, compressed air flows through an inlet (1) into the plenum chamber of the Gen4 Super Ion Air Knife. The flow is directed to a precise, slotted orifice. As the primary airflow exits, it creates a uniform sheet of air across the entire length, pulling in in surrounding air (2). An electrically powered Gen4 Ionizing Bar (3) fills the curtain of air with positive and negative charges. The air stream delivers the static eliminating ions to the product surface (4) where it instantly neutralizes static and cleans off dust and other particulates.

The Gen4 Super Ion Air Knives are powerful tools, and very quickly dissipates 5kV of static even at low compressed air supply pressures. At 5 PSIG, only 3.7 SCFM (0.3 BAR, only 105 SLPM) of compressed air per foot of length is required!!  Sound levels are also very low, resulting in quiet operation.

super ion air knife performance

Added Features –

  • Compressed Air Inlets are provided on each end and the bottom of the Super Air Knife
  • Thicker shims can be installed easily if more force is needed.
  • Emitter points are durable stainless steel
  • The high voltage cable is armored to resist cuts and abrasion, and has integral grounding.  Threaded bayonet connector is fully assembled and ready to use
  • Electromagnetically shield cable protects sensitive electronics
  • Gen4 Ionizing Bars and Power Supplies are UL Component Recognized to U.S and Canadian safety standards and are CE and RoHS compliant
  • Power Supplies are 115/230 VAC selectable and come with 2 or 4 outlets
  • Standard lengths from 3″ to 108″ (76mm to 2743mm) are offered, and custom lengths are available to meet your process needs

Successful applications include web cleaning, pre-paint dust removal, shrink wrapper machinery, printing equipment, package cleaning,and bag opening/filling operations.

If you have questions about Gen4 Super Ion Air Knives, other types of Static Elimination products,  or any of the 16 different EXAIR Intelligent Compressed Air® Product lines, feel free to contact EXAIR and myself or any of our Application Engineers can help you determine the best solution.

Jordan Shouse
Application Engineer

Send me an Email
Find us on the Web
Like us on Facebook
Twitter: @EXAIR_JS

Image courtesy of Jared Yeh Rainbow Panorama, Creative Commons License Attribution 2.0 Generic (CC BY 2.0)

Application Database: Agriculture.

EXAIR uses many different methods to connect with our customers.  We have our website, social media, blogs, publications etc.  We like to share solutions for some of the most common pneumatic problems in the industry.  EXAIR generated a large collection of application information where EXAIR products have solved problems and improved processes, and we placed them in a database.  We organized them by Application and by Industry.  In this blog, I will show you how to use our application database; specifically for agriculture.

The agricultural industry is an essential business for people around the world.  So, it is very important to reduce costs and improve processes.  EXAIR has engineered products that can help in these areas.  This can include spraying fungicide, conveying products, blowing compressed air, and monitoring pneumatic systems.  Compressed Air Systems are considered to be a fourth utility within industries because they use a large amount of energy.  Whether an air compressor uses electricity or fuel for portable units, it is important to use this system as efficiently as possible.  EXAIR has a library of different processes in which we already have improved in these areas safely and efficiently.  If you are part of the Agricultural industry, it can be beneficial for you to find the areas that we already improved.  It is a “been there, done that” solution that you can take an advantage of using.

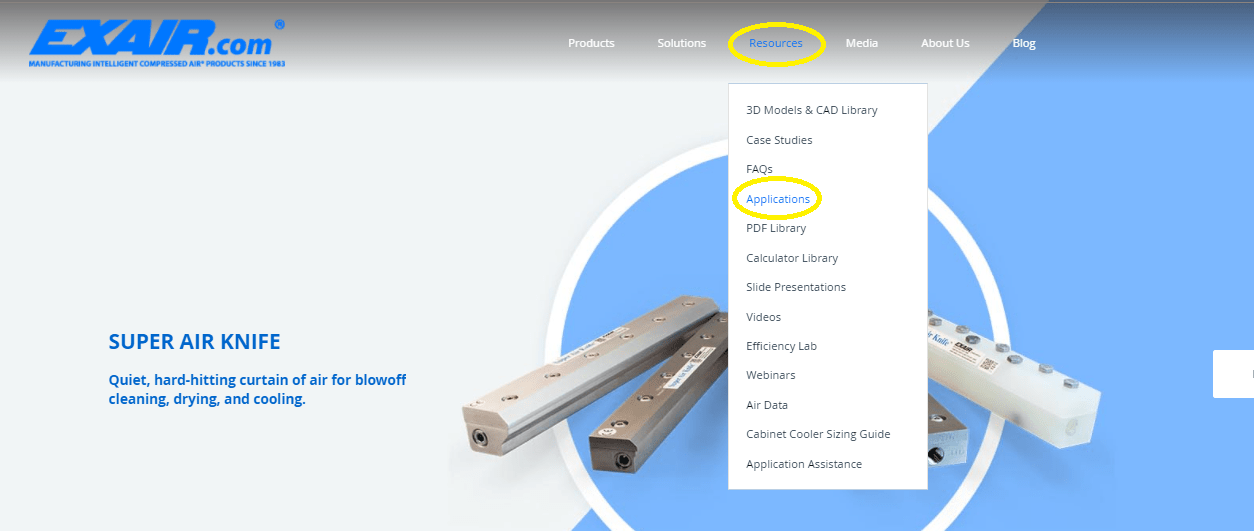

Here is how you can find this library.  First, you will have to sign into the EXAIR website.  Click HERE to log in.  Once you fill in the proper information, you can then retrieve a great number of resources about EXAIR products that we manufacture.   The Application database is located under the Resources drop-down tab (Reference photo below) and at Applications.

At the Application Search Library, we have over one thousand applications that we reference.  In the left selection pane, we organized them in alphabetical order under two categories, Application and Industry.

Scroll down in the Industry selection pane until you come to the sub-category: Agriculture.  If you do not find it, you can select the Expand button to open up more industries.  We have other applications as well that may relate to your specific process if you scroll up and down the list, like Food and Beverage as examples.

Why is this important?  If you are a plant manager or owner, the value of the Application Database can help your current processes with pre-qualified results.  Within the Agriculture industry, simple solutions can be found to address those “nagging” issues that you see every day.  For crisis situations and shutdowns, EXAIR categorized these applications in a way to reference quickly and easily.  And since EXAIR has a high volume of stocked items, we can get the parts to you very fast so you can quickly be on your way to a solution.

In today’s market, companies are always looking for ways to cut cost, increase productivity, and improve safety.  EXAIR can offer engineered products to do exactly that.  With the “been there and done that” solutions already described in the Application Database; you can have confidence in finding a way in solving pneumatic issues.  If you do not sign up at http://www.EXAIR.com and take advantage of these offerings, you will be missing out on a great tool to optimize your compressed air system.  And if you did not find a solution inside our Application database, an Application Engineer at EXAIR is available.

John Ball
Application Engineer
Email: johnball@exair.com
Twitter: @EXAIR_jb

Application Database : Success Stories in Foundries

EXAIR products are used in countless applications across all facets of industry, we have been working to compile some in a easy to read Application Database on EXAIR.COM!

Today I wanted to cover a few application successes from within Foundries.

The first example is from a company who manufactures flux for aluminum processing. They were experiencing conveyor belt jam ups because not all the material would fall off at the tail end of the belt. What adhered to the belt would be carried over on the return, fell off due to gravity and vibration, and was causing build up underneath and jamming the belt. The Model 110036 36″ (914mm) Super Air Knife was installed on the end of the conveyor blowing off any tramp material as the belt came around the head pulley. This consolidated the debris to one area where they could easily reach it for removal. This all but eliminated maintenance and downtime.

Super Air Knife installed

A manufacturer of aluminum rods was having problems with removing drawing die lubricant from aluminum bar being cut to length. The lubricant was causing the bar to slip in the grippers, causing the bars to be cut short. Passing the bar through a Model 2402 2″ (51mm) Super Air Wipe effectively removed the lubricant, and eliminated grip slippage.

Super Air Wipe

The last customer operates an aluminum foundry. A small actuating cylinder’s seals were failing frequently, due to the heat from a nearby furnace. Using a Model 3230 Medium Vortex Tube, they are able to direct a flow of cold air onto the cylinder, keeping the elastomer seals cool, which greatly extends their life.

Cooling or Heating with the Vortex Tube

If you have questions about any of the quiet EXAIR Intelligent Compressed Air® Products, feel free to contact EXAIR and myself or one of our Application Engineers can help you determine the best solution.

Jordan Shouse
Application Engineer
Send me an email
Find us on the Web
Like us on Facebook
Twitter: @EXAIR_JS

EXAIR’s Application Database: Static Elimination

EXAIR uses many different methods to connect with our customers.  We have our website, social media, blogs, publications etc. We like to share solutions for some of the most common pneumatic problems in the industry.  EXAIR generated a large collection of application information where EXAIR products have already solved problems and improved processes.  We organized them by Application and by Industry.  In this blog, I will show you how to use the Application database; specifically, for Static Elimination.

As the weather gets colder and the air gets dryer, static electricity can become a real nuisance in a production plant.  Machines will start jamming, alignments will be difficult, debris will collect on surfaces, and hazardous sparks can shock staff.  EXAIR manufactures a large line of Gen4 Static Eliminators to remove this static nuisance.  We collected these key solutions in an Application Library.

Here is how you can find this library.  First, you will have to sign into EXAIR.  Click here: Log In.  Once you fill in the proper information, you can then retrieve a great number of resources about EXAIR products that we manufacture.   The Applications are under the Resource tab.  (Reference photo below).

In the Application library, we have over one thousand applications that we reference.  In the left selection pane, we organized them under two categories, Applications and Industry.   (Reference photo below).

Scroll down in the “Application” selection pane until you come to the sub-category: Static Elimination.  (You may have to click on the “Expand” to see more categories).  You will find many applications in which EXAIR has already helped to improve processes by removing static, and it is documented.

Why is this important?  If you are a plant manager or owner, the value of the Application Database can improve your current processes with pre-qualified results.  Within the Static Elimination Application Database, simple solutions can be found to address those “nagging” issues that you see every day.  For crisis situations and shutdowns, EXAIR categorized these applications in a way to reference quickly and easily.  And since EXAIR stocks our solutions, we can get these parts to you very fast.

In today’s market, companies are always looking for ways to cut cost, increase productivity, and improve safety.  EXAIR can offer engineered products to do exactly that.  With the “been there and done that” solutions already described in the Application Database; you can have confidence you will find a way to solve your static issues.  If you do not sign up at http://www.EXAIR.com and take advantage of these offerings, you will be missing out on a great tool to optimize your compressed air system.  Contact an Application Engineer now.  We will be happy to help you.
